Flange &
Valve
FLANGE

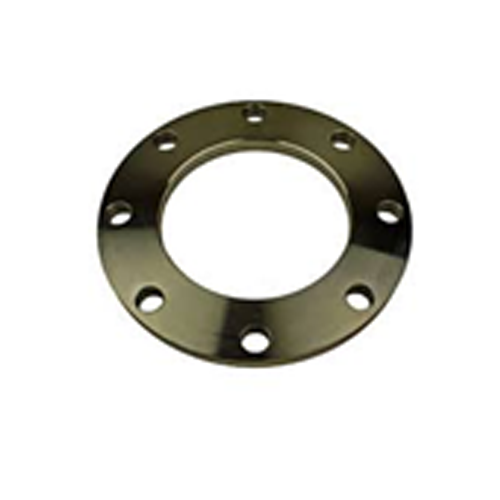

| Mild Steel Flange | |
|---|---|
| Specification | BS 10 TABLE 'E' |
| BS 4504 PN 16/3 | |
| JIS 10K STD B2212 | |
| JIS 5K STD B2212 | |
| ANSI 150LB | |
| Size | 15mm - 1200mm |

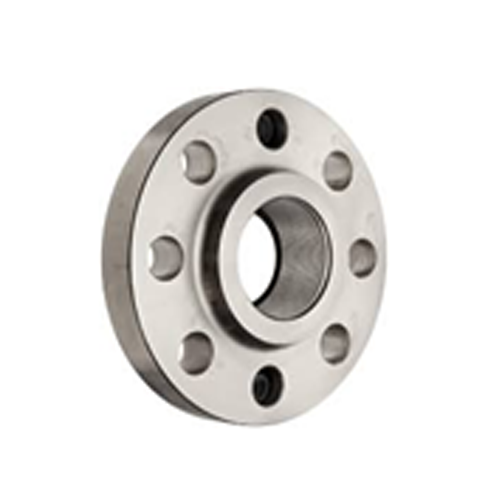

| Stainless Steel Flange | |
|---|---|
| Specification | PN 16 |
| ANSI 150LB | |
| JIS 10K | |
| JIS 5K | |
| Size | 100mm - 700mm |
VALVE

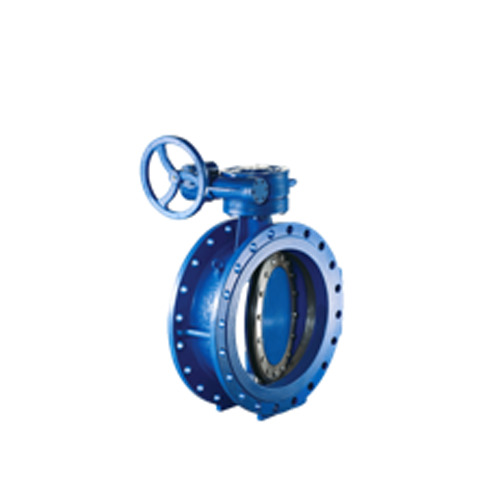

| Butterfly Valve | |
|---|---|
| Standard | BS EN: 593: 2009 + A1: 2010 |
| Size | DN50-DN2200 |
| Operations Method | LEVER OPERATED (DN50-DN200) |
| WORM GEAR (DN50-DN2200) | |
| Applied Pressure | SHELL TEST - 24 BAR |
| SEAT TEST - 17.6 BAR | |
| Max. Working Pressure | 16 BAR |

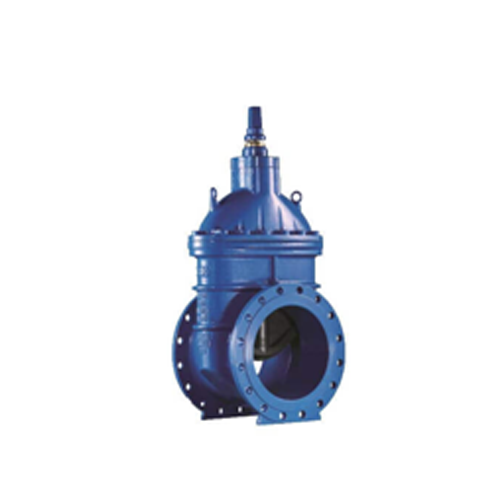

| RESILIENT SEATED GATE VALVE | |
|---|---|
| Standard | BS5163: Pt,1 & 2: 2004 (DN50-DN600) |
| BS EN 1171: 2002 (DN700-DN900) | |
| BS EN 1074-2: 2000 (DN50-DN1200) | |
| Size | DN50-DN1200 |
| Operation Method | MANUAL OPERATED CLOCKWISE CLOSING/ |
| MANUAL OPERATED ANTI-CLOCKWISE CLOSING | |
| Max. Working Pressure | 16 BAR |

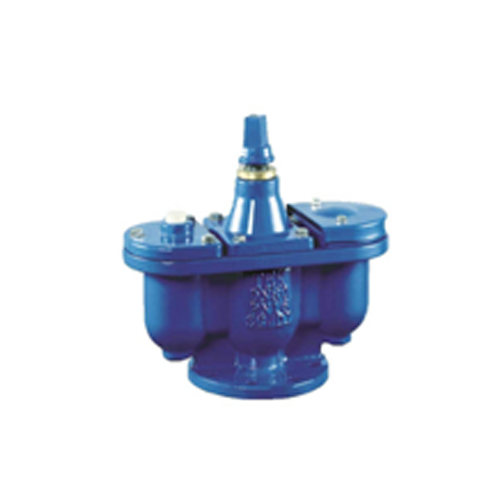

| STANDARD AIR VALVE | |
|---|---|
| Standard | JKR 20200-0097-01/AWWA C512: 2004 |
| Size | DN50-DN200 |
| Flange Drilling | BS 4504 PN16, OTHER STANDARD UPON REQUEST |
| Features | REMOVABLE COVER CASING FOR EASY INSPECTION |
| AND MAINTENANCE OF ORIFICE FLOAT(BALL) | |

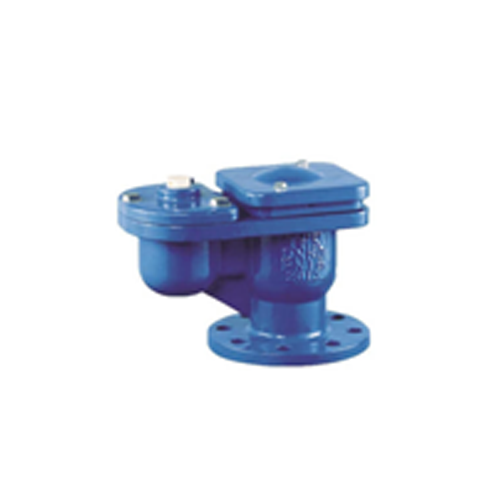

| KINETIC AIR RELIEF VALVE | |
|---|---|
| Standard | JKR 20200-0097-01/AWWA C512: 2004 |
| Size | DN50-DN200 |
| Flange Drilling | BS 4504 PN16, OTHER STANDARD UPON REQUEST |
| Features | REMOVABLE COVER CASING FOR EASY INSPECTION |
| AND MAINTENANCE OF ORIFICE FLOAT(BALL) | |

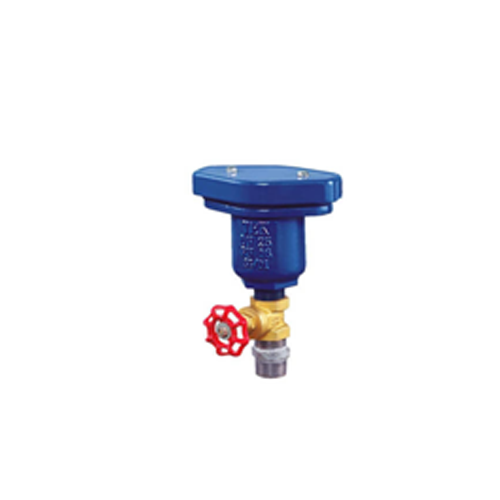

| AIR RELIEF VALVE | |
|---|---|
| Standard | JKR 20200-0097-01/AWWA C512: 2004 |
| Size | DN25 |
| Features | REMOVABLE COVER CASING FOR EASY INSPECTION |
| AND MAINTENANCE OF ORIFICE FLOAT(BALL) | |

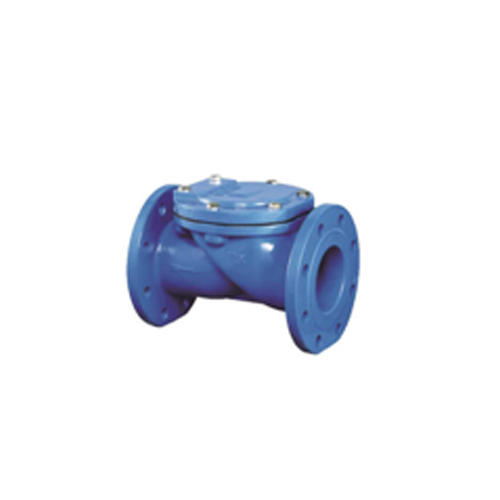

| CHECK VALVE | |
|---|---|
| Standard | BS EN 12334: 2001 |
| Size | DN50-DN600 |
| Flange Drilling | BS EN 1092 PN16, OTHER STANDARD UPON REQUEST |
| Features | REMOVABLE COVER ON TOP OF VALVE BODY CASING |
| FOR EASY MAINTENANCE OF THE DOOR | |

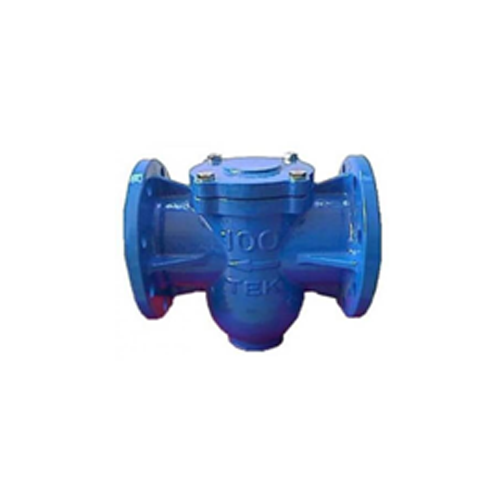

| T-POT STRAINER | |
|---|---|
| Standard | JKR 20200-0100-01 |
| Size | DN80-DN200 |
| Flange Drilling | BS 4504 PN16, OTHER STANDARD UPON REQUEST |
| Features | *INCREASE THE LIFE SPAN OF WATER METER. |
| *IMPROVES THE RETICULATION FOR BULK METER SYSTERM. | |
| *REDUCES THE MAINTENANCE OF WATER METERS. | |
| *DIRT AND DEBRIS ACCUMULATED CAN BE REMOVED BY USING THE SCREEW OR BE FLUSHED THROUGH THE DRAIN PLUG. | |

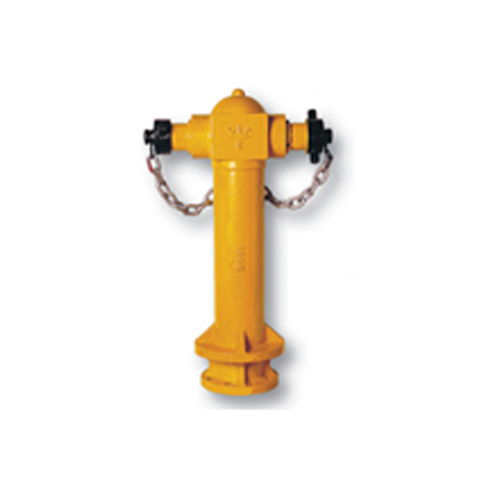

| PILLAR HYDRANT | |
|---|---|
| Standard | JKR 20200-0042-99 |
| Size | DN100 |
| Max. Working Pressure | 16 BAR |
| Applied Pressure | SHELL TEST-24 BAR |

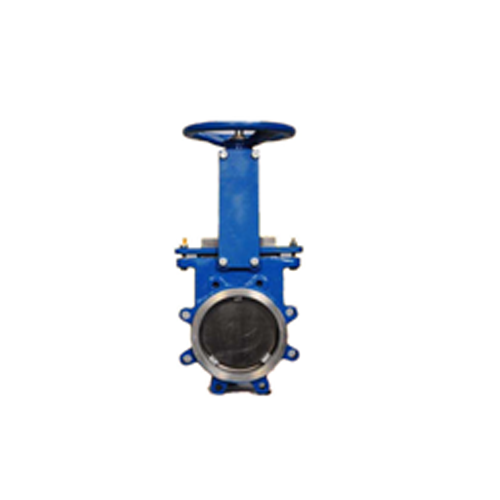

| DUCTILE IRON KNIFE GATE VALVE | |
|---|---|
| Standard | MSS-SP-81, STAINLESS STEEL OR STAINLESS STEEL LINED |
| BONNETLESS, KNIFE GATE VALVE WITH FLANGE END (TYPE 3) | |
| Size | DN50-DN800 |
| Max. Working Pressure | 16 BAR |
| Applied Pressure | SHELL TEST-24 BAR |
| SEAT TEST-17.6 BAR | |
| Operated Method | MANUAL OPERATED |
